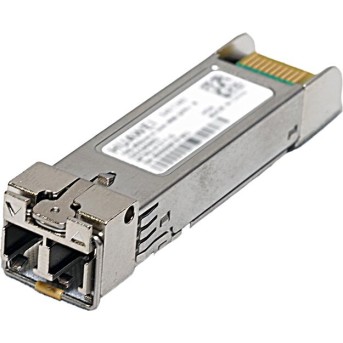

Трансивер оптический HUAWEI OMXD30000 10GBASE-SR, SFP+ Transceiver, Multi-mode (850nm, 300m, LC) в Metoo.kz

Basic Information Part Number 02318169 Model OMXD30000 Description Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC) Level-1 category 10GE SFP+ Optical Modules Module name OMXD30000 Technical Specifications Connector type LC/DLC Optical fiber type MMF Form factor SFP+ Transmission rate [bit/s] 10G Target transmission distance [km] Multimode fiber (with diameter of 62.5 μm): 26 m Multimode fiber (OM1) (with diameter of 62.5 μm): 33 m Multimode fiber (with diameter of 50 μm): 66 m Multimode fiber (OM2) (with diameter of 50 μm): 82 m Multimode fiber (OM3) (with diameter of 50 μm): 300 m Multimode fiber (OM4) (with diameter of 50 μm): 400 m Application standard/Type 10GBASE-SR Working case temperature [°C(°F)] 0°C to 70°C (32°F to 158°F) Type of the end face of the fiber ceramic ferrule PC or UPC DDM options Supported Modal bandwidth [MHz*km] Multimode fiber: 160 MHz*km Multimode fiber (OM1): 200 MHz*km Multimode fiber: 400 MHz*km Multimode fiber (OM2): 500 MHz*km Multimode fiber (OM3): 2000 MHz*km Multimode fiber (OM4): 4700 MHz*km Center wavelength [nm] 850 Overload power (AVG) [dbm] -1.0 Minimum Tx optical power (AVG) [dbm] -7.3 Maximum Tx optical power (AVG) [dbm] -1.0 Minimum extinction ratio [db] 3.0 Rx sensitivity (OMA) [dbm] -11.1 .common-modelTable-style { border: 1px solid #e4e4e4; width: 100%; } .common-modelTable-style .table-title td { font-size: 14px; font-weight: 700; color: #3D3F43; height: 40px; line-height: 1; background: #f8f8f8; } .common-modelTable-style td { border: 1px solid #e4e4e4; font-size: 14px; color: #3D3F43; padding: 5px 20px 5px 20px; vertical-align: middle; } .common-modelTable-style tbody td.con-title { width: 45%; }
