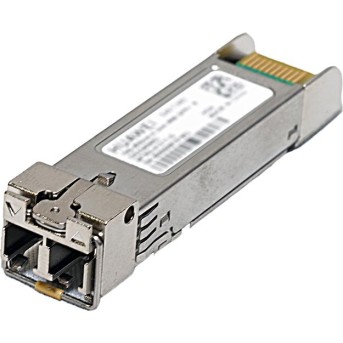

Трансивер оптический HUAWEI OGSC10DD0 1000BASE-LX10/LH, eSFP (industry) Transceiver, Single-mode (1310nm, 10km, LC) в Metoo.kz

Basic Information Part Number 02310LJH Model OGSC10DD0 Description Optical Transceiver,eSFP(industry),1310nm,1.25Gb/s,-9.5~-3dBm,-20dBm,LC,single-mode,10km Level-1 category GE eSFP Optical Modules,Industrial Optical Modules Module name OGSC10DD0 Technical Specifications Connector type LC Optical fiber type SMF Form factor eSFP Transmission rate [bit/s] 1 Gbit/s Target transmission distance [km] Single-mode fiber: 10 km Application standard 1000BASE-LX10/LH Working case temperature [°C(°F)] -40°C to +85°C (-40°F to +185°F) Center wavelength [nm] 1310 Overload power [dbm] -3.0 Minimum Tx optical power [dbm] -9.0 Maximum Tx optical power [dbm] -3.0 Minimum extinction ratio [db] 9.5 Rx sensitivity [dbm] -19 .common-modelTable-style { border: 1px solid #e4e4e4; width: 100%; } .common-modelTable-style .table-title td { font-size: 14px; font-weight: 700; color: #3D3F43; height: 40px; line-height: 1; background: #f8f8f8; } .common-modelTable-style td { border: 1px solid #e4e4e4; font-size: 14px; color: #3D3F43; padding: 5px 20px 5px 20px; vertical-align: middle; } .common-modelTable-style tbody td.con-title { width: 45%; }
