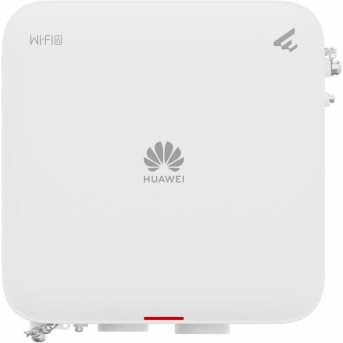

Точка доступа HUAWEI AP761 Wi-Fi 6 outdoor AX1800 (2.4/5GHz, 2x2/2x2 MIMO, 1*GE RJ45 PoE+/1*SFP, IP68 -40 to +60C) в Metoo.kz

Basic Information Part Number 02355VFB Model AP761 Description AP761(11ax outdoor,2+2 dual bands,built-in antenna,BLE) First supported version V200R023C10 Technical Specifications Installation Type Wall,Pole Height [mm] 69 mm Depth [mm] 200 mm Wide [mm] 200 mm Weight with packaging [kg(lb)] 3.73 kg (8.22 lb) Weight without packaging [kg(lb)] 1.91 kg (4.21 lb) Maximum number of physical ports on the entire device GE (RJ45) x 1, 10M/100M/1000M auto-sensing GE optical port (SFP) Maximum power consumption [W] 17.7 Maximum heat dissipation [BTU/hour] 60.4 Power supply mode PoE Input voltage range [V] PoE: 802.3at/af 802.3at power supply description No function is limited. 802.3bt power supply description No function is limited. 802.3af power supply description Wi-Fi: 2.4 GHz (2x2) + 5 GHz (2x2). The maximum combined power is adjusted to 23 dBm (2.4 GHz) and 23 dBm (5 GHz). Wired network port: The SFP optical port and GE/PoE_IN work as combo ports, and only one of them is working at a time. If both of them are enabled, the optical port takes effect preferentially. Wi-Fi standard 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax Antenna gain [dBi] 2.4G: 10 dBi 5G: 11 dBi BLE: 5 dBi Maximum transmit power [dBm] 2.4G: 28 dBm (Max) 5G: 27 dBm (Max) Note: This is the total MIMO radio power, which is the same as: 2.4G: 25 dBm/chain (Max) 5G: 24 dBm/chain (Max) BLE: < 10 dBm Radio number 2 MIMO spatial streams Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 Radio interface Built-in directional antennas Beamwidth of the built-in antenna [degrees] 2.4 GHz: - Horizontal plane: 65° - Vertical plane: 40° 5 GHz: - Horizontal plane: 65° - Vertical plane: 20° Operating frequency band 2.4GHz,5GHz Storage NAND Flash 512 MB Long-term operating temperature [°C(°F)] –40°C to +65°C (–40°F to +149°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) Storage temperature [°C(°F)] –40°C to +85°C (–40°F to +185°F) Long-term operating relative humidity [RH] 0% RH to 100% RH Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft) MTBF [year] 123 MTTR [hour] 0.5 Console port BLE console Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3 Ingress protection level (dustproof/waterproof) IP68 Service port surge protection [kV] 6 kA in common mode Antenna port surge protection [kA] N/A Ground Ground Wind resistance 67 m/s BLE BLE5.2 3G/LTE filte (ACC) Supported .common-modelTable-style { border: 1px solid #e4e4e4; width: 100%; } .common-modelTable-style .table-title td { font-size: 14px; font-weight: 700; color: #3D3F43; height: 40px; line-height: 1; background: #f8f8f8; } .common-modelTable-style td { border: 1px solid #e4e4e4; font-size: 14px; color: #3D3F43; padding: 5px 20px 5px 20px; vertical-align: middle; } .common-modelTable-style tbody td.con-title { width: 45%; }
