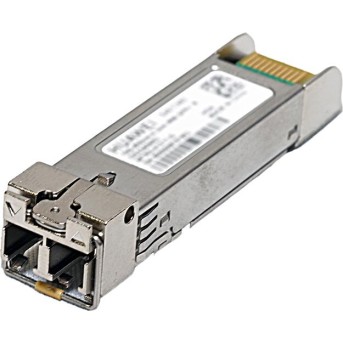

Трансивер оптический HUAWEI 10GBASE-LR, SFP+ Transceiver, Single-mode (1310nm, 10km, LC) в Metoo.kz

Basic Information Part Number 02318170 Model OSX010000 Description Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC) Level-1 category 10GE SFP+ Optical Modules Module name OSX010000 Technical Specifications Connector type LC/DLC Optical fiber type SMF Form factor SFP+ Transmission rate [bit/s] 10G Target transmission distance [km] Single-mode fiber (G.652) (with diameter of 9 μm): 10 km Application standard/Type 10GBASE-LR Working case temperature [°C(°F)] 0°C to 70°C (32°F to 158°F) Type of the end face of the fiber ceramic ferrule PC or UPC DDM options Supported Center wavelength [nm] 1310 Overload power (AVG) [dbm] 0.5 Minimum Tx optical power (AVG) [dbm] -8.2 Maximum Tx optical power (AVG) [dbm] 0.5 Minimum extinction ratio [db] 3.5 Rx sensitivity (OMA) [dbm] -12.6 .common-modelTable-style { border: 1px solid #e4e4e4; width: 100%; } .common-modelTable-style .table-title td { font-size: 14px; font-weight: 700; color: #3D3F43; height: 40px; line-height: 1; background: #f8f8f8; } .common-modelTable-style td { border: 1px solid #e4e4e4; font-size: 14px; color: #3D3F43; padding: 5px 20px 5px 20px; vertical-align: middle; } .common-modelTable-style tbody td.con-title { width: 45%; }
