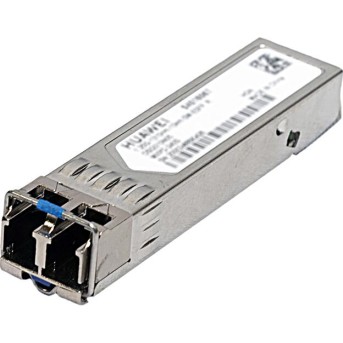

Трансивер оптический HUAWEI eSFP-GE-SX-MM850 1000BASE-SX, eSFP Transceiver, Multi-mode (850nm, 550m, LC) в Metoo.kz

Basic Information Part Number 02315204 Model eSFP-GE-SX-MM850 Description Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC) Level-1 category GE eSFP Optical Modules Module name eSFP-GE-SX-MM850 Technical Specifications Connector type LC/DLC Optical fiber type MMF Form factor eSFP Transmission rate [bit/s] 1G Target transmission distance [km] Multimode optical fiber (diameter: 62.5 μm): 220 m Multi-mode (OM1) optical fiber (diameter: 62.5 μm): 275 m Multimode optical fiber (diameter: 50 μm): 500 m Multimode (OM2) optical fiber (diameter: 50 μm): 550 m Application standard/Type 1000BASE-SX Working case temperature [°C(°F)] -20°C to +85°C (-4°F to +185°F) Type of the end face of the fiber ceramic ferrule PC or UPC DDM options Supported Modal bandwidth [MHz*km] Multimode optical fiber: 160 MHz*km Multi-mode (OM1) optical fiber: 200 MHz*km Multimode optical fiber: 400 MHz*km Multi-mode (OM2) optical fiber: 500 MHz*km Center wavelength [nm] 850 Overload power (AVG) [dbm] 0 Minimum Tx optical power (AVG) [dbm] -9.5 Maximum Tx optical power (AVG) [dbm] -2.5 Minimum extinction ratio [db] 9 Rx sensitivity (OMA) [dbm] -17.0 .common-modelTable-style { border: 1px solid #e4e4e4; width: 100%; } .common-modelTable-style .table-title td { font-size: 14px; font-weight: 700; color: #3D3F43; height: 40px; line-height: 1; background: #f8f8f8; } .common-modelTable-style td { border: 1px solid #e4e4e4; font-size: 14px; color: #3D3F43; padding: 5px 20px 5px 20px; vertical-align: middle; } .common-modelTable-style tbody td.con-title { width: 45%; }
