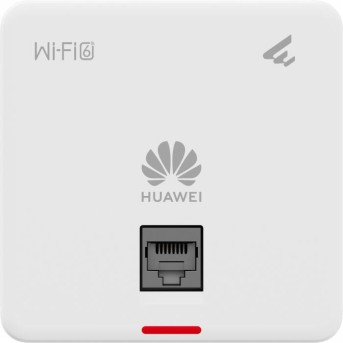

Точка доступа HUAWEI AP160 Wi-Fi 6 настенная (2.4/5 GHz, 2x2/2x2 MIMO, 1*GE PoE/1*GE RJ45, установка в стене 86x86x35мм)
Можем доставить к Вам
Доступен самовывоз
39 460 ₸
Похожие товары
39 450 ₸
40 640 ₸
38 160 ₸
38 150 ₸
40 810 ₸
38 020 ₸
40 900 ₸
41 400 ₸
- Описание
- Отзывы (0)
| Basic Information | |
| Part Number | 50086816 |
| Model | AP160 |
| Description | AP160(11ax indoor,2+2 dual bands,smart antenna) |
| First supported version | V200R023C00 |
| Technical Specifications | |
| Installation Type | Junction Box |
| Height [mm] | 86 mm |
| Depth [mm] | 42.5 mm |
| Wide [mm] | 86 mm |
| Weight with packaging [kg(lb)] | 0.24 kg (0.53 lb) |
| Weight without packaging [kg(lb)] | 0.14 kg (0.31 lb) |
| Maximum number of physical ports on the entire device | GE (RJ45) x 2, 10M/100M/1000M auto-sensing |
| Maximum power consumption [W] | 9.1 |
| Maximum heat dissipation [BTU/hour] | 29.5 |
| Power supply mode | PoE |
| Input voltage range [V] | PoE: 802.3af |
| 802.3at power supply description | No function is limited. |
| DC power supply description | Not supported |
| 802.3bt power supply description | No function is limited. |
| 802.3af power supply description | No function is limited. |
| Wi-Fi standard | 2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax |
| Antenna gain [dBi] | 2.4 GHz: 3 dBi/chain (peak value) 3 dBi (combined gain) 5 GHz: 2 dBi/chain (peak value) 1 dBi (combined gain) |
| Maximum transmit power [dBm] | 2.4G: 17 dBm/chain 20 dBm (combined power) 5G: 17 dBm/chain 20 dBm (combined power) |
| Radio number | 2 |
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 |
| Radio interface | Built-in smart antennas |
| Operating frequency band | 2.4GHz,5GHz |
| Storage | NAND Flash 256 MB |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| MTBF [year] | 446 |
| MTTR [hour] | 2 |
| Console port | None |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Service port surge protection [kV] | PoE port: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion C |
| Ground | floating ground |
| BLE | Not supported |
| 3G/LTE filte (ACC) | Not supported |
