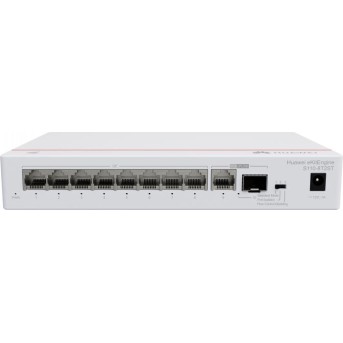

Коммутатор HUAWEI S110-8T2ST (8*10/100/1000BASE-T, 1*GE SFP combo 1*10/100/1000BASE-T port, 56V DC, desktop, fanless)
Можем доставить к Вам
Доступен самовывоз
35 430 ₸
Похожие товары
35 400 ₸
35 350 ₸
36 080 ₸
36 530 ₸
34 110 ₸
33 900 ₸
33 750 ₸
37 570 ₸
- Описание
- Отзывы (0)
| Basic Information | |
| Part Number | 98012199 |
| Model | S110-8T2ST |
| Description | S110-8T2ST (8*10/100/1000BASE-T ports, 1*GE SFP port, 1*10/100/1000BASE-T port, with 1*AC power adapter, fanless) |
| Technical Specifications | |
| Chassis material | PC+ABS |
| Height [mm] | 35 mm |
| Depth [mm] | 130.0 mm |
| Wide [mm] | 210.0 mm |
| Chassis height [U] | 0.8 |
| Weight with packaging [kg(lb)] | 0.70 (1.54) |
| Weight without packaging [kg(lb)] | 0.46 (1.01) |
| Maximum power consumption [W] | 8.4 |
| Typical power consumption [W] | 8 |
| Heat dissipation mode | Natural heat dissipation |
| Maximum heat dissipation [BTU/hour] | 28.66 |
| Typical heat dissipation [BTU/hour] | 27.30 |
| Power supply mode | Power adapter |
| Input voltage range [V] | Power adapter input: 90 V AC to 264 V AC; 47 Hz to 63 Hz |
| Rated input voltage [V] | Power adapter input: 100–240 V AC; 50/60 Hz Power adapter output: 12 V DC |
| Maximum input current [A] | 1 A |
| Number of power slots | 0 |
| Number of card slots | 0 |
| Memory | - |
| Flash memory | - |
| Redundant power supply | Not supported |
| Types of fans | None |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Airflow direction | - |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| MTBF [year] | 86.16 |
| MTTR [hour] | 2 |
| Availability | > 0.99999 |
| Maximum number of physical ports on the entire device | 10 |
| Maximum number of 100GE ports | 0 |
| Maximum number of 40GE ports | 0 |
| Maximum number of 25GE ports | 0 |
| Maximum number of 10GE ports | 0 |
| Maximum number of GE ports | 10 |
| Maximum number of FE ports | 10 |
| Downlink ports | 8 x 10/100/1000BASE-T ports |
| Uplink ports | 1 x GE SFP port and 1 x 10/100/1000BASE-T port |
| USB | Not supported |
| Console port | Not supported |
| Eth Management port | Not supported |
| Working mode | - Standard mode - Port isolation - Flow control disabling |
| MAC address entry | 2K |
| Service port surge protection [kV] | Common mode: ±4 kV |
| Power supply surge protection | ±2 kV in differential mode, ±4 kV in common mode |
| RPS input | Not supported |
| PoE | Not supported |
| Общие данные | |
| UID товара | |
| Производитель | |
| Модель | |
| Тип оборудования | |
| Вид коммутатора | |
| Порты и интерфейсы | |
| Количество портов | |
| Тип портов | |
| Скорость портов, Мбит/с | |
| Поддержка PoE | |
| Бюджет PoE, Вт | |
| Сетевые стандарты и протоколы | |
| Сетевой стандарт IEEE | |
| Поддерживаемые протоколы | |
| Производительность | |
| Пропускная способность, Гбит/с | |
| MAC-таблица, записей | |
| Буфер памяти, МБ | |
| Макс. скорость пересылки, Mpps | |
| Управление и функции | |
| Веб-интерфейс | |
| CLI / SNMP | |
| VLAN | |
| Link Aggregation | |
| QOS | |
| Питание | |
| Источник питания | |
| Потребляемая мощность, Вт | |
| Физические параметры | |
| Размеры (Ш×В×Г), мм | |
| Вес, кг | |
| Монтаж | |
| Вентиляция | |
| Рабочая среда | |
| Температура эксплуатации, °C | |
| Влажность, % | |
| Гарантия и ссылки | |
| Срок гарантии (мес.) | |
| Ссылка производителя | |
