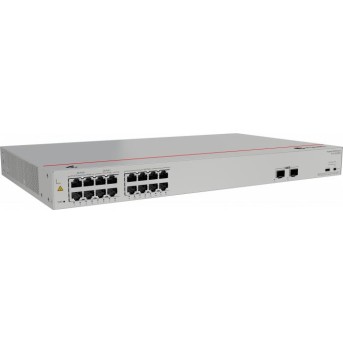

Коммутатор Huawei S110-16LP2SR (16*10/100/1000BASE-T, 2*GE SFP ports, 124W PoE+, AC power) в Metoo.kz

Basic Information Part Number 98012197 Model S110-16LP2SR Description S110-16LP2SR (16*10/100/1000BASE-T ports, 2*GE SFP ports, PoE+, AC power) Technical Specifications Chassis material Metal Height [mm] 43.6 mm Depth [mm] 260.0 mm Wide [mm] 442.0 mm Chassis height [U] 1 Weight with packaging [kg(lb)] 3.7 (8.16) Weight without packaging [kg(lb)] 3.0 (6.61) Maximum power consumption [W] Without PoE: 22.0 W Full PoE load: 160.0 W (PoE: 124 W) Typical power consumption [W] 22.0 Heat dissipation mode Natural heat dissipation Maximum heat dissipation [BTU/hour] Without PoE: 75.07 Full PoE load: 545.94 Typical heat dissipation [BTU/hour] 75.07 Power supply mode AC built-in Input voltage range [V] AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz Rated input voltage [V] AC input: 100–240 V AC; 50/60 Hz Maximum input current [A] 3 A Number of power slots 0 Number of card slots 0 Memory - Flash memory - Redundant power supply Not supported Types of fans None Noise at normal temperature (acoustic power) [dB(A)] Noise-free (no fans), < 30 Noise at normal temperature (acoustic pressure) [dB(A)] Noise-free (no fans), < 20 Airflow direction - Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F) Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing) Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.) Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.) MTBF [year] 57.77 MTTR [hour] 2 Availability > 0.99999 Maximum number of physical ports on the entire device 18 Maximum number of 100GE ports 0 Maximum number of 40GE ports 0 Maximum number of 25GE ports 0 Maximum number of 10GE ports 0 Maximum number of GE ports 18 Maximum number of FE ports 18 Downlink ports 16 x 10/100/1000BASE-T ports (124 W PoE+) Uplink ports 2 x GE SFP ports USB Not supported Console port Not supported Eth Management port Not supported Working mode - Standard mode - Port isolation - Uplink aggregation - Flow control disabling MAC address entry 8K Service port surge protection [kV] Common mode: ±4 kV Power supply surge protection Differential mode: ±6 kV; common mode: ±6 kV RPS input Not supported PoE Supported .common-modelTable-style { border: 1px solid #e4e4e4; width: 100%; } .common-modelTable-style .table-title td { font-size: 14px; font-weight: 700; color: #3D3F43; height: 40px; line-height: 1; background: #f8f8f8; } .common-modelTable-style td { border: 1px solid #e4e4e4; font-size: 14px; color: #3D3F43; padding: 5px 20px 5px 20px; vertical-align: middle; } .common-modelTable-style tbody td.con-title { width: 45%; }
