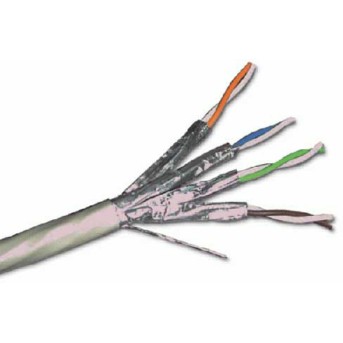

Кабель бухта FTP 305м Cat 6 23 AWG Dintek (1107-04004) в Metoo.kz

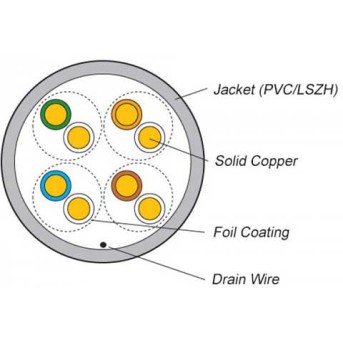

POWERMAX™ : GIGABIT HIGH SPEED ETHERNET Cat.6 4P U/FTP with braiding 23AWG solid cable The DINTEK PowerMAX™ Shielded Category 6 solutions are guaranteed to exceed ClassE channel specifications as set down in International standards. Our PowerMAX™ shielded solution comprises Category 6 component compliant patch panels, keystones and patch cords. When combined with DINTEK’s Category 6 FTP & S/FTP cable, an end-to-end channel exists that maximises data throughput and provides headroom for all future technologies operating beyond one Gigabit. Combined with other DINTEK PowerMAX™ shielded products, our Category 6 cable is the perfect solution to your voice and data communications needs. APPLICATIONS Voice Fast Ethernet(IEEE802.3) 100Vg-AnyLAN(IEEE 802.12) Token Ring(IEEE 802.5) TP-PMD(ANSI X3T9.5) 100Base-T Ethernet(IEEE 802.3u) 155/622 Mbps 1.2/ 2.4 Gbps ATM 1000Base-T Ethernet 550 MHz Broadband video INDUSTRY STANDARDS UL444 communication cables standard, UL AWM style 2835 ANSI/TIA-568-C.2 CABLE STRUCTURE Twisted Pair Colors Pair 1 > blue, white/blue ring. Pair 2 > orange, white/orange ring Pair 3 > green, white/green ring Pair 4 > brown, white/brown ring Insulation Material: PE foam Core diameter : 1.64 ± 0.05mm Number of pairs : 4 pairs Portfolio: four pairs of twisted mountain of a round wire. Each pair twisted pair is wrapped in aluminum foil cover isolator , then all four are surrounded by a pvc sheath Jacket Material :PVC Wire diameter: 7.7mm 0.2mm Flame rating: CM Color: Gray PHYSICAL CHARACTERISTICS Coat Elongation: min 100% Coat tensile strength : min 1500psi Outside is 240 hours 1000C aging elongation retention : 70% After the outside is 240 hours 1000C aging tensile residual rate : 65% ELECTRICAL CHARACTERISTICS Characteristic impedance:100 Ohm 15% Conductor resistance (Max.) : 66.7 Ohm/Km at 200C Resistance unbalance (Max.) : 5% MAX./100m Mutual coupling capacitance: nom 13.6pf/ft Insulation resistance (Min.): 100M ohm/km Withstand voltage: 30V Temperature: 600​C
